SCE - Incremental

SCE Incremental encoder


Introduction:

The SCE Incremental is a magnetic field based encoder capable of resolving the rotating field of the SCE magnet into 20 and 50 pulses per revolution depending on model.

All variants of the encoder has a build-in diagnostic LED for use during installation. By sensing the magnetic field strength the encoder will indicate if the current position is sufficient for reliable operation; if the LED flashes green when the magnet is rotating the alignment is acceptable, if red further adjustment is needed.

The SCE™ encoders are primarily developed for installations with a SCD or SCD mini series door controller.

This version provides a simple phase shifted A and B signal.

Key Features:

  • Easy installation and retrofitting.
  • Suitable for all motor types or rotating parts.
  • Cost-effective solution.
  • Hot-molded waterproof IP65 rated enclosure.
  • LED diagnostic light.


SCE - Incremental documentation Get in touch

For documentation in other languages than
English please search our:

Documentation database

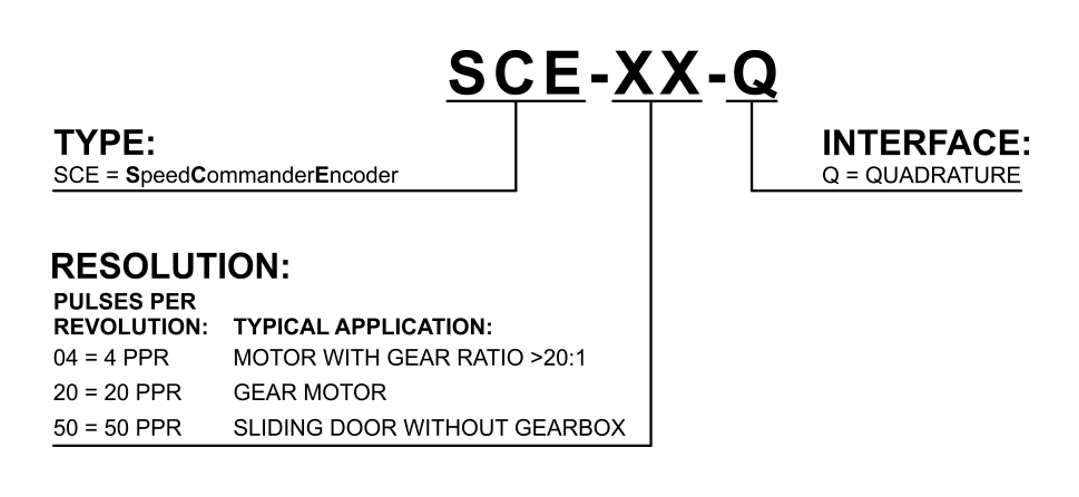

SCE models overview:




Click for larger view
